carries the T5 Compact™ Target Identifier (TID) NEBS certified switch that
is not just NEBS compliant but is a NEBS certified switch. Telco also has other
NEBS certified switches including the Telco T5 Pro which is aT5Pro’s™
multi-layer, multi-service switch with capabilities that provide speed and simplicity
along with robust services such as bandwidth management, traffic shaping, security
and Quality of Service (QoS). T5Pro can be configured as a Digital Subscriber
Line (DSL) Access Multiplexer feeding as many as 72 locations with 10 Mbps of
symmetrical VDSL. Its architecture is scalable and easily upgradeable with customers’
needs for higher bandwidth and integration of their voice, data and video services
central office carrier class switch which offers central office and service providers
a cost-effective solution for aggregation and management of up to 480 Translation
Language 1 (TL1) network elements (NE) through a single IP address. T5 Compact
TID is the perfect solution for service providers who are looking to conserve
valuable IP addresses in their COs. It is the only 1 RU, 48-port TID NEBS
certified switch available. The carrier-class T5 Compact TID is NEBS certified
and offers redundant power supplies.
T-5 NEBS CERIFIED
SWITCH
Telco
T-5 Pro Nebs Certified Switch T5 Compact™ Target Identifier (TID) switch
offers service providers a cost-effective solution for aggregation and management
of up to 480 Translation Language 1 (TL1) network elements (NE) through a single
IP address. T5 Compact TID is the perfect solution for service providers who are
looking to conserve valuable IP addresses in their COs. It is the only 1 RU, 48-port
TID switch available. The carrier-class T5 Compact TID is NEBS certified and offers
redundant power supplies.In
a typical service provider network, there is a central NOC that monitors NEs withina
specified network using TL1 protocol. Typically, in order to communicate with
a specific NE (like Telco Systems’ M13 EdgeLink100), each NE is assigned
a dedicated IP address. This becomes a major management problem as the number
of NEs increases. COs are exhausting their blocks of assigned management IP addresses
given to them by the central NOC. Telco Systems’ T5 Compact TID solves this
problem by enabling service providers to conserve valuable IP addresses by aggregating
TL1 management of up to 480 NEs through a single IP address.T5
Compact TID offers dramatic cost savings by reducing the amount of expensive NOC
switches. It also significantly reduces the number of management cables between
network and NOC racks.T5
Compact TID is easy to install at the top of any relay rack containing NEs from
various vendors. Up to 48 NEs can be directly connected to the T5 Compact TID
via a 10/100BaseTX Ethernet link. TL1 alarming is transported over these links
to the T5 Compact TID and then on to the NOC.T5
Compact TID is also unique in that it supports management of TL1 devices that
are "nested" behind the directly connected NEs. This includes NEs that
support TL1 flow through management, as well as NEs that act as switches between
the IP and OSI management networks thus providing TL1 access to the OSI-based
TL1 devices beyond. T5 Compact TID supports up to 9 such nested remote devices
for each directly connected NE. This allows T5 Compact TID to manage up to 480
network elements while still using up only one IP address on the management network.
Benefits
and Features
* Conserves IP addresses in the CO
* Cost-effective solution that supports
the enlargement of TL1 managed networks
* Up to 480 TL1 NEs managed through
one IP address
* NEBS Level 3 certified
* Compact, only 1 RU 12’
depth
* Redundant power supplies
* Dual 10/100/1000 BaseT/TX Ethernet
uplink ports
* Dual mini-GBIC Ethernet ports that support a variety of copper
and fiber uplinks
* Wire-speed, non-blocking architecture
* Enhanced security
using IP Access Control Lists and port-based MAC-level security
"Telco
Systems' T5Pro is a clear leader in the On the Edge sector of the IP telephony
industry.
We're proud to recognize their hard work and innovation with a Product
of the Year Award for 2001."
Rich Tehrani, President of TMC & Group
Editor-In-Chief of Internet Telephony

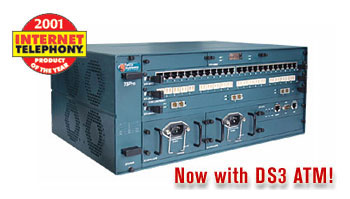

T5Pro’s™
multi-layer, multi-service capabilities provide speed and simplicity along with
robust services such as bandwidth management, traffic shaping, security and Quality
of Service (QoS). T5Pro can be configured as a Digital Subscriber Line (DSL) Access
Multiplexer feeding as many as 72 locations with 10 Mbps of symmetrical VDSL.
Its architecture is scalable and easily upgradeable with customers’ needs
for higher bandwidth and integration of their voice, data and video services.
* Modular Telecom-Grade LAN/MAN/WAN Routing Switch Telecom-Grade features such
as
• NEBS Certified
• CPU Redundancy
• Hot-swappable
redundant power supply drawers
• All modules hot-swap support
* 10/100/1000,
fiber various fixed & pluggable optics and Bi-Directional & CWDM support
* Packet over SONET/SDH (POS) and ATM modules
* RIP, OSPF and BGP4 based routing
* 4,096 IEEE 802.1q VLANs based on port and subnet
* 802.1P, ToS and DiffServ
Policy based traffic classification and remarking
* Advanced redundancy features
including resilient ports
* BiNOS on board
* Hardware based Rate Limiting
for dynamic bandwidth allocation from 13Kbps up to 1 Gbps
* Layer 2 –
7 switching
* Under 12" depth
* Transparent LAN services for end-to-end
tunneling services
* DHCP Relay with option 82 support
* DHCP Server with
option 82 support
* Access Control Lists for enhanced network security
* Out-of-Band Management ports
T5
Compact™ Target Identifier (TID) switch offers service providers a cost-effective
solution for aggregation and management of up to 480 Translation Language 1 (TL1)
network elements (NE) through a single IP address. T5 Compact TID is the perfect
solution for service providers who are looking to conserve valuable IP addresses
in their COs. It is the only 1 RU, 48-port TID switch available. The carrier-class
T5 Compact TID is NEBS certified and offers redundant power supplies.
In
a typical service provider network, there is a central NOC that monitors NEs within
a
specified network using TL1 protocol. Typically, in order to communicate with
a specific NE (like Telco Systems’ M13 EdgeLink100), each NE is assigned
a dedicated IP address. This becomes a major management problem as the number
of NEs increases. COs are exhausting their blocks of assigned management IP addresses
given to them by the central NOC. Telco Systems’ T5 Compact TID solves this
problem by enabling service providers to conserve valuable IP addresses by aggregating
TL1 management of up to 480 NEs through a single IP address.
T5
Compact TID offers dramatic cost savings by reducing the amount of expensive NOC
switches. It also significantly reduces the number of management cables between
network and NOC racks.
T5
Compact TID is easy to install at the top of any relay rack containing NEs from
various vendors. Up to 48 NEs can be directly connected to the T5 Compact TID
via a 10/100BaseTX Ethernet link. TL1 alarming is transported over these links
to the T5 Compact TID and then on to the NOC.
T5
Compact TID is also unique in that it supports management of TL1 devices that
are "nested" behind the directly connected NEs. This includes NEs that
support TL1 flow through management, as well as NEs that act as switches between
the IP and OSI management networks thus providing TL1 access to the OSI-based
TL1 devices beyond. T5 Compact TID supports up to 9 such nested remote devices
for each directly connected NE. This allows T5 Compact TID to manage up to 480
network elements while still using up only one IP address on the management network.
.
Multi
Service Access
VoIP
Channel
Banks
T1/E1 Electrical-to-Optical Converters
Frame Relay
Integrated
Access
Mini DCS
Multiplexers
FTTH
Battery
Backup
.
Telco T- 5
Compact Switch
"The
results show that Telco Systems' T5 Compact outperforms Cisco's Catalyst 2950G-48
convincingly in every test performed"- Click
Here
Cost-effective,
high-performance, ultra-compact IP solution
NEBS
Compliant
Dense 10/100 Mbps copper configuration provides high capacity in
a small space
Choice of fiber interfaces for uplink
Cost-effective port
trunking capabilities
Non-blocking architecture provides maximum data throughput
Standards
IEEE 802.1d Spanning Tree
IEEE 802.1p Priority Queuing
Interfaces
10/100/1000BaseT/TX
Connectors:
RJ-45
Transmission:
Full/Half-Duplex
Range:
100m
1000BaseSX/1000BaseLX
Connectors:
LC
Transmission:
Full/Half-Duplex
Optical Budget:
9db
Fiber:
62.5/125 or 50/125
micron, 850nm,
9/125 micron, 1310nm
Range:
220m (62.5/125), 550m (50/125),
10
km (9/125)
Switching Characteristics
Technology:
ASIC based parallel
Store-and-Forward
Bridging:
IEEE 802.1d Spanning Tree Algorithm
Address
Table:
64K MAC addresses
Forwarding Rate:
Up to 148,800 pps / 100
Mbps ports
Up to 1,488,000 pps / 1 Gbps ports
Flow Control:
802.3x
for full duplex. and back-pressure
for half duplex transmission
Routing
Characteristics
Technology:
ASIC based IP routing
Address Table:
64K
IP Addresses, 17 default gateways
Forwarding Rate:
Up to 148,800 pps /
100 Mbps ports
Up to 1,488,000 pps / 1 Gbps ports
Management
SNMP Client
MIBs:
RFC959 File Transfer Protocol, RFC1350 TFTP Protocol.
RFC1905 SNMPv2,
SNMPv3*, RFC2068 HTTP., SYSLOG.
RFC1902 SMIv2, RFC 1157 SNMP, RFC 1213 MIB
II, RFC 1493,
Bridge MIB, RFC 1591 DNS, RFC 1643 EtherLike MIB,
RFC 1724
RIPv2, MIB,RFC 1757 RMON, RFC 2239 MAU,
IETF Dot1p Dot1q MIB, BATM Enterprise
MIB
Telnet:
CLI
Internet:
Java based Web management
Interface:
In-Band/Out-of-Band
Local Interface:
RJ-45
SW Download:
via
TFTP
Management Features
VLANs:
Up to 4k VLANs per 802.1q
Bridging:
Spanning Tree, Aging
Class of Service:
4 queues per port
Monitoring:
Single/Multi port mirroring
General
Dimensions:
(W) 442 x (H)
44 x (L) 304 mm
(19" x 1U x 12")
Power:
36-60VDC, 100-240
VAC, 50/60 Hz, 60W max.
Weight:
5.2 kg (11.5 lb)
Operating Temp.:
0ºC - 45ºC
Humidity:
up to 90%, non-condensing
Safety
& Immunity
EN 60950 Safety of Information Technology Equipment
EN
60825 Radiation Safety of Laser Products
FCC Class A, VCCI Class 1, UL, CUL,
CE (EMI, EMS, LVD)
EN55022 (EMC)
EN 61000 (Immunity)d
