Fiber Optic Patch Panels

Rack Mount Fiber Optic Patch Panels- 24 Port Fiber Optic Patch Panels-Indoor Fiber Optic Patch Panels - 48 Port Fiber Optic Patch Panels-72 Port Fiber Optic Patch Panels- 144 Port Patch Panels

ATEK's rackmount fiber optic patch panel enclosures are designed for direct termination of up to 144 fibers. The RAC series accommodates up to 12 modular panels and is equipped with routing guides to limit bend radius and enhance strain-relief control. The heavy-duty metal body provides excellent protection for the inside fibers. A large variety of connector adapters are offered to meet your specific requirements. MTP module cassettes and module preassemblies are available for easy fiber installation and management.

Rack Mount Fiber Optic Patch Panel Applications

Premise data network cabling and installations
Central office locations for Telco applications
Head-end location for CATV applications
Termination of interconnect cables at entry or intermediate cross connects
Termination of horizontal cables, cross connection of backbone cables to jumper cables
Splice capability with splice trays loaded.
Features and Benefits

Fits 19-inch and 23-inch racks
1U, 2U, and 4U available.
Durable, clear front door for easy viewing of the interior; removable backboard for easy access of terminated cables
Removable top lid for easy access for 2U products
Front Plexiglass and rear steel doors with ¼ turn latches to allow easy access from both sides
Strain-relief hardware and routing guides help maintain minimum bend radius.
Available fully populated with adapters, pigtails and slice trays or unloaded
Labeling kit, zip ties and installation screws included
Competitive pricing and prompt delivery



Part No. ATSRAC-1X
Dimensions: Width = 17'', Depth = 12'', Height = 1.75''
Weight (unloaded): 10.3 lbs.
Port Capacity: 6-36
Features: 1U rackmount can be loaded with up to 3 panels with 6 to 36 port capacity. Reversible mounting bracket for 19'' or 23'' racks. 16-gauge steel with black powder finish coat. Steel door at front and at rear with ¼ turn latches. Top lid removable at both front and rear. Cable management spools in the rear of the enclosure and cable management rings to the front for jumper management. Sliding tray for access to both front and rear. Large entry points at front for easy jumper management, as well as "D" shaped cutouts at rear for access of backbone cable. Accessory pack included with additional cable management, label holders and screws for securing to rack and top panels. Labeling kit included for clear and precise identification of ports.
Lead time: In Stock, Immediate Shipment



Part No. ATSRAC-12X
Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
Weight (unloaded): 12 lbs.
Port Capacity: 6-24
Features: 2U rackmount can be loaded with 2 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extension brackets for 23'' rack. 16-gauge steel with black powder finish coat. Removable top lid for easy access to fiber. Spools at the rear for neat and clean cable management.
Lead time: In Stock, Immediate Shipment



Part No.ATSRAC-24X
Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
Weight (unloaded): 12 lbs.
Port Capacity: 6-48
Features: 2U rackmount can be loaded with 4 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extension brackets for 23'' rack. 16-gauge steel with black powder finish coat. Removable top lid for easy access to fiber. Spools at the rear for neat and clean cable management.
Lead time: In Stock, Immediate Shipment

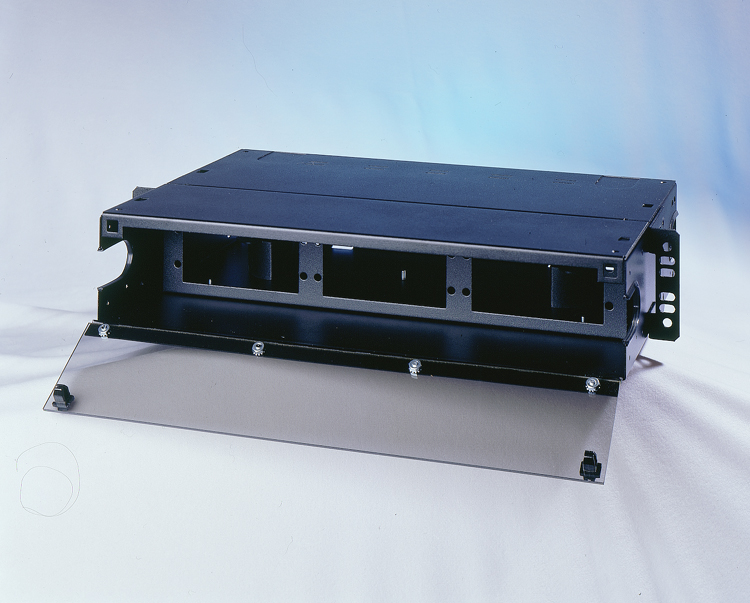

Part No. RAC-2X
Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
Weight (unloaded): 12 lbs.
Port Capacity: 6-72
Features: 2U rackmount can be loaded with 6 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extension brackets for 23'' rack. 16-gauge steel with black powder finish coat. Removable top lid for easy access to fiber. Sliding tray for high-density situations. Spools at the rear for neat and clean cable management.
Lead time: In Stock, Immediate Shipment

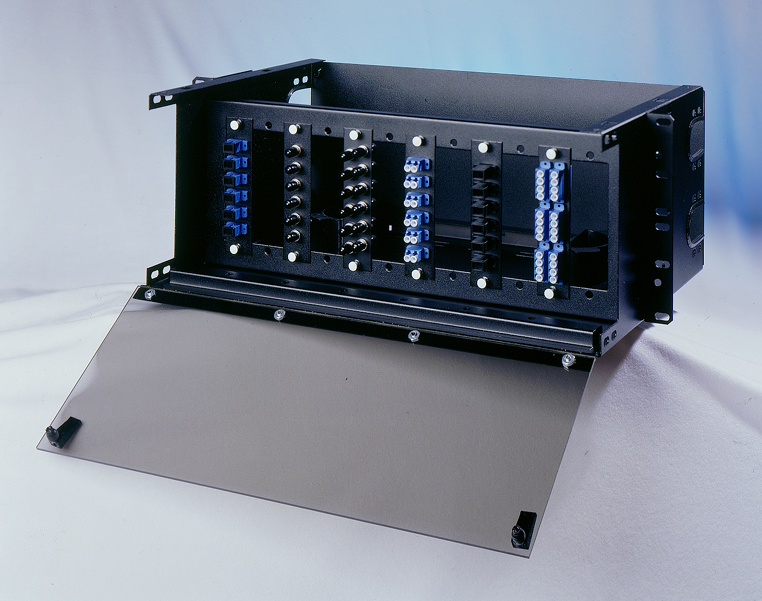

Part No. RAC-4X
Dimensions: Width = 17'', Depth = 12'', Height = 7''
Weight (unloaded): 11.5 lbs.
Port Capacity: 6-144
Features: 4U enclosure can be loaded with 12 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extensions for 23'' racks. 16-gauge steel with corrosion-resistant black powder finish coat.
Lead time: In Stock, Immediate Shipment
