ATEK Communications carries the entire line of Wilcom's Splitters. The Wilcom PS-21 ISDN POTS Splitter is a full ETSI combined ISDN/POTS ADSL Splitter designed to provide ISDN service in concert with ADSL technology. The device blocks high frequency (20kHz-1MHz) energy from interfering with ISDN/POTS equipment. The PS-21 employs a low-pass filter for standard voice-grade lines.
The PS-21 is designed to be mounted inside the customer premises near where the phone service enters the building. Connections to the ADSL modem, house phone(s) and telephone line are via RJ-11 jacks. This allows the installer to simply connect the existing premise wiring to the PHONE jack on the splitter, and have POTS service up and running within minutes without expensive and time-consuming rewiring. An RJ-11 jack connects directly to the ADSL equipment with data-grade cabling.
Wilcom PS-20 ETSI POTS Splitter
ATEK Communications carries the entire line of Wilcom's Splitters.The Wilcom PS-20 ETSI POTS Splitter is designed to provide POTS service in concert with ADSL technology. The device blocks high frequency (20kHz-1MHz) energy from interfering with POTS equipment. The PS-20 employs a low-pass filter for standard voice-grade lines.
The PS-20 is designed to be mounted inside the customer premises near where the phone service enters the building. Connections to the ADSL modem, house phone(s) and telephone line are via RJ-11 jacks. This allows the installer to simply connect the existing premise wiring to the PHONE jack on the splitter, and have POTS service up and running within minutes without expensive and timeconsuming rewiring. An RJ-11 jack connects directly to the ADSL equipment with data-grade cabling.
Compatible with ADSL coding schemes
The PS-20 ADSL POTS Splitter is compatible with all ADSL coding schemes
Wilcom's PS-15 Wall-mount POTS Splitter
ATEK Communications carries the entire line of Wilcom's PS-15 Wall-mount POTS Splitter is a passive lowpass filter designed to provide POTS service in concert with ADSL technology. The device blocks high frequency (20kHz- 1MHz) energy from interfering with POTS equipment. The PS-15-I3S employs a low-pass filter for standard voicegrade lines.
The PS-15-I3S is designed to be mounted inside the customer premises near where the phone service enters the building. Two types of connection options are supported by the PS-15-I3S splitter; a standard 6 pole terminal block with screws or RJ jacks. This allows the installer to simply connect the existing premise wiring to the PHONE jack or associated terminals on the splitter, and have POTS service up and running within minutes without expensive and timeconsuming rewiring. An RJ-45 jack or associated terminals connect directly to the ATU-R/MODEM equipment with data-grade cabling.
The PS-11-RTM (Ring Trip Mitigator) employs a low-pass filter for standard voice-grade lines. With emerging technologies such as ADSL2 and ADSL2+ and enhanced services like video, the POTS splitter is an integral part of the network. The PS-11-RTM is specifically designed for video over DSL applications. The unique design of the PS-11-RTM addresses specific concerns effecting video such as ring-trip problems. When used in conjunction with Wilcom's ADSL2+ CO PS-4100 splitter series, modem re-syncing is virtually eliminated. The PS-11-RTM POTS Splitter is unique because of its convenient mounting location inside the Network Interface Device (NID). The PS-11-RTM is similar in size to a standard station protector and mounts on the Telco side of the Network Interface Device (NID). The terminal strip allows for easy installation so the installer can simply connect the existing premise wiring to the PHONE terminals on the splitter, and have POTS service up and running within minutes without expensive, and time-consuming rewiring. ATU-R terminals connect directly to the ADSL equipment with existing cable.
Compatible with ADSL coding schemes
The PS-15-I3S ADSL Master POTS Splitter is compatible with all ADSL coding schemes
Meets ANSI T1.413 and G.992.1 - E.2
The PS-15-I3S ADSL Master POTS Splitter is fully compliant with the requirements of ANSI T1.413-1998 Annex E; ITU-T G.992.1 & G.992.2 Annex E.2 Type 2 (North America)
Wilcom's The PS-11 Ring Trip Mitigator-Passive Low Pass ADSL Filter,ADSL Filter
ATEK Communications carries the entire line of Wilcom's The PS-11 Ring Trip Mitigator is a passive low-pass filter designed to provide POTS service in concert with ADSL2+ technology. The device blocks high frequency energy from interfering with POTS equipment.
The PS-11-RTM (Ring Trip Mitigator) employs a low-pass filter for standard voice-grade lines. With emerging technologies such as ADSL2 and ADSL2+ and enhanced services like video, the POTS splitter is an integral part of the network. The PS-11-RTM is specifically designed for video over DSL applications. The unique design of the PS-11-RTM addresses specific concerns effecting video such as ring-trip problems. When used in conjunction with Wilcom's ADSL2+ CO PS-4100 splitter series, modem re-syncing is virtually eliminated. The PS-11-RTM POTS Splitter is unique because of its convenient mounting location inside the Network Interface Device (NID). The PS-11-RTM is similar in size to a standard station protector and mounts on the Telco side of the Network Interface Device (NID). The terminal strip allows for easy installation so the installer can simply connect the existing premise wiring to the PHONE terminals on the splitter, and have POTS service up and running within minutes without expensive, and time-consuming rewiring. ATU-R terminals connect directly to the ADSL equipment with existing cable.
The PS-11-RTM POTS Splitter is unique because of its convenient mounting location inside the Network Interface Device (NID). The PS-11-RTM is similar in size to a standard station protector and mounts on the Telco side of the Network Interface Device (NID). The terminal strip allows for easy installation so the installer can simply connect the existing premise wiring to the PHONE terminals on the splitter, and have POTS service up and running within minutes without expensive, and time-consuming rewiring. ATU-R terminals connect directly to the ADSL equipment with existing cable.
Compatible with ADSL2+
The PS-11-RTM POTS Splitter is compatible with all ADSL coding schemes
Video over DSL Applications
The PS-11-RTM is optimized for video over DSL subscribers of less than 9,000 feet (2745 m). For DSL subscribers on longer loops use the PS-11-I3
Passive Low Pass Filter
ATEK Communications carries the entire line of Wilcom's PS-11-I2 POTs Splitter,ADSL POTS Splitter, Pots Splitters, POTS Splitter Supplier and a variety of other POTs Splitters. The Wilcom PS-11-I2 POTS Splitter is a passive low-pass filter designed to provide POTS service in concert with ADSL technology. The device blocks high frequency (20kHz - >1MHz) energy from interfering with POTS equipment. The PS-11-I2 employs a low-pass filter for standard voice-grade lines.
The Wilcom PS-11-I2 POTS Splitter is unique because of its convenient mounting location inside the Network Interface Device (NID). The PS-11-I2 is similar in size to a standard station protector and mounts on the Telco side inside the Network Interface Device. The terminal strip allows for easy installation so the installer can simply connect the existing premise wiring to the PHONE terminals on the splitter, and have POTS service up and running within minutes without expensive, and time-consuming rewiring. ATU-R terminals connect directly to the ADSL equipment with existing cable. (Data-grade cabling is recommended for new installations.)
Compatible with ADSL coding schemes
The PS-11-I2 POTS Splitter is compatible with all ADSL
coding schemes
Meets ANSI T1.413 -1998 & ITU-T G.992.1/.2
The PS-11-I2 Master POTS Splitter is compliant with the requirements of both ANSI T1.413-1998 Annex E; ITU-T G.992.1/G.992.2 Annex E.2 Type 2 (North America)
Passive Low Pass Filter Passive filter design for continuous phone service in the event of an AC power failure
Unique Footprint
The PS-11-I2 is similar in size to a standard station protector allowing direct installation into a wide variety of manufactured Network Interface Devices.
Convenient Mounting
The PS-11-I2 POTS Splitter is unique because of its convenient mounting location in the Telco side of the Network Interface Device.
Unlimited ADSL Bandwidth
Full bandwidth allocation as compared to a "micro-filter".
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA.

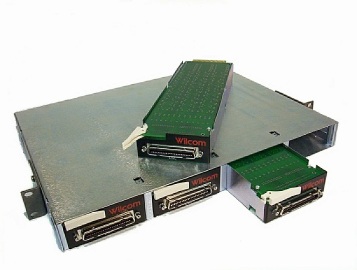

Wilcom PS-4401 1RU-96 Port Shelf
ATEK Communications carries the entire line of Wilcom's Splitters. Wilcom’s PS-4401 1RU-96 Port Shelf is the industries highest density ADSL2+ POTS splitter in a one rack-unit design. This 96 port 1 RU design along with Wilcom’s proven performance makes it the perfect Central Office splitter. The high-density, temperature hardened splitter also has the addition of common mode protection creating the perfect splitter for remote cabinets.
The unique design of the PS-4401 shelf allows multiple PS-4401 shelves to be stacked together creating higher density units such as a 288 port 3U shelf which can be specified at time of ordering. The PS-4401 is designed with the DSL connection located at the front of the shelf, and POTS and LINE interfaces in the rear. These connections are standard 50 pin Amphenol type. This unique design separates the DSL and voice connections from a common backplane significantly reducing crosstalk critical to video delivery. The DSL connection on the front of each module is complimentary to evolving ETSI standards recommending DSL connections on the front of DSLAMs. This installation flexibility produces savings in time and expense, and is achieved by simply running a short jumper cable rather than dressing the cable down the back to the existing splitter.
Designed to the following standards
ANSI T1.413-1998, Annex E; ITU-T G.992.1 (G.DMT), G.992.2 (G.LITE), Annex E.2 Type 2 (North America), G.992.3 (ADSL2), G.992.5 (ADSL2+), and NEBS Level 3.
Remote Cabinet Installations
The PS-4400 splitter modules offer both common mode and differential mode protection ensuring protection against power crosses and lightning surges.
No AC or DC Power Required
The central office POTS Splitter is a passive device which will maintain Life-Line POTS integrity.
1 EIA Rack Unit Tall
At only 1 EIA rack unit tall ( 1.75"), the PS-4401 is the highest density at 96 ports, with the smallest footprint in the industry today. This unit provides for excellent remote applications where real estate is at a premium.
Wide Spectrum of Operation
The new PS-4401 shelf is ADSL2+ ( 2.2MHz) and ADSL2 ++/quad (3.75MHz) compliant making it an excellent ADSL splitter product for delivering video, and future versions of DSL.
Crosstalk Performance
The PS-4400 splitter modules along with the PS-4401 splitter shelf deliver excellent port-to-port crosstalk isolation.
Enviromentally Hardened
The PS-4400 POTS splitter modules meet the hardened requirements for remote deployment.
Life-Line POTS
The PS-4401 POTS Splitter Shelf employs a Life-Line POTS feature that will not interrupt POTS service even if POTS Splitter cards are removed.
POTS SplitterThe Wilcom PS-20 ETSI POTS Splitter is designed to provide POTS service in concert with ADSL technology. The device blocks high frequency (20kHz-1MHz) energy from interfering with POTS equipment. The PS-20 employs a low-pass filter for standard voice-grade lines.
PS-11 NID ADSL Shelf. This PS-4101 1U Shelf is 1.75" tall and design to be equipped with up to two (2) ADSL2+ Splitter cards for a total of 48 ports. The shelf can be mounted in 19 or 23 inch racks by using the unique designed rack adapters. The wide spectrum of operation makes this shelf ideal for ADSL2+ deployment. Also this shelf delivers excellent port-to-port cross talk isolation making it an excellent ADSL splitter product for video deployment. Its' small foot print design makes it an excellent product for remote applications.
ADSL and POTS Coexist- 24 Port splitter Card
The PS-4100 series provide standard POTS service in concert with ADSL technology by blocking high-frequency ADSL energy from interfering with POTS equipment.
The Wilcom PS-11-I2 POTS Splitter is a passive low-pass filter designed to provide POTS service in concert with ADSL technology. The device blocks high frequency (20kHz - >1MHz) energy from interfering with POTS equipment. The PS-11-I2 employs a low-pass filter for standard voice-grade lines.
This PS-4103 3U Shelf is 3 EIA rack units tall (5.25") and design to be equipped with up to six (6) ADSL2+ Splitter cards for a total of 144 ports. It is one of the industries highest density shelves with the smallest foot-print for mounting into 19 inch racks. The shelf can be mounted in 19 or 23 inch racks by using the unique designed rack adapters. The wide spectrum of operation makes this shelf ideal for ADSL2+ deployment. Also this shelf delivers excellent port-to-port cross talk isolation making it an excellent ADSL splitter product for video deployment. Its' small foot print design makes it an excellent product for remote applications.
Wilcom’s PS-4401 1RU-96 Port Shelfis the industries highest density ADSL2+ POTS splitter in a one rack-unit design. This 96 port 1 RU design along with Wilcom’s proven performance makes it the perfect Central Office splitter. The high-density, temperature hardened splitter also has the addition of common mode protection creating the perfect splitter for remote cabinets
