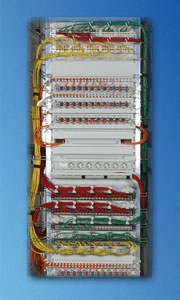

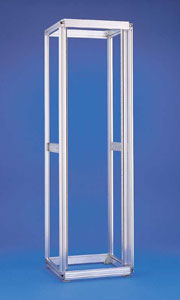

■ with fixed 19" built-in unit on the front
■ for built-in units in accordance with IEC 297 3
■ flexible assembly of the built-in units using T slots

For the installation of
■ 19" components on the front
■ equipment with maximum width of 450 mm
■ installation accessories

Jumpering compartment
■ front 123 mm

Load rating
■ 5000 N static

Tests
■ earthing according to VDE 0100 part 540
■ vibration test according to MIL-STD 810 E

Material / Finish
■ basic rack, extruded aluminium, polished
■ corner piece die-cast aluminium
■ multifunctional frames and 19" angular extrusions sheet steel, zinc-plated

Supply schedule
1 basic unit
2 19" aluminium vertical extrusions with T slot and increment slide for spring nut M5
2 multifunctional frames for cable clamping and universal assembly options
4 levelling feet (0-25 mm)

How supplied
■ assembled

Please note
For the installation of chassis runners and 19" shelves, additional 19"- are required at the rear.
Rack Suites

To create a rack suite, per connection you require a set of suite connectors BN 1.130.935.7

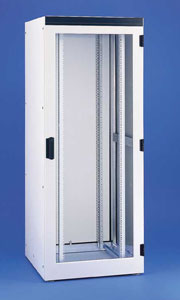

■ With fixed 19" installation on the front and rear for components in accordance with IEC 297-3
■ Installation of chassis runners and 19" shelves possible
■ Cable entry via bottom and top cover
■ Door opening angle, 180°

Variants
Type 1
■ single rack (with side panels)
Type 2
■ rack for rack suite (without side panels)

For the installation of
■ 19" components on the front and rear
■ equipment with maximum width of 450 mm
■ installation accessories

Jumpering compartment
■ front 123 mm

Load rating
■ 5000 N static

Degree of protection
IP 20 (upgradeble to IP 55)

Tests
■ Earthing in accordance with VDE 0100 T 540
■ IP Test in accordance with DIN 40 050 / IEC 529
■ Earthing in accordance with VDE 0100 T 540
■ IP Test in accordance with DIN 40 050 / IEC 529

Material / Finish
■ basis rack, extruded aluminium, polished
■ corner pieces, die-cast aluminium, polished
■ cover zinc-plated sheet steel, powder-coated textured
■ doors, sheet steel, ,powder-coated structure, glass infill front door, single security-glass panel, 4 mm
■ multifunctional members an 19"-extrusions sheet steel, zinc-plated

Colour
Final digit of order number .1:
■ Door trim RAL 9011 black
■ Visible surface of the cover RAL 7035 light grey
Final digit of order number .8:
■ Door trim RAL 9011 black
■ Visible surface of the cover RAL 7021 black grey

Supply schedule

Type 1
1 Basic rack 1 19" Vertical extrusions, sheet steel with mounting holes 2 Multifunctional struts for cable clamping and universal mounting options 2 Side panels with quick connectors 1 Cover with integrated cable entry 1 Front door, single, single safety glass panel, with handle and mounting for cylinder lock 1 Rear door, single, sheet steel, with handle and mounting for cylinder lock 1 Earth set, complete ( VDE 0100 ) 4 Levelling feet
Type 2
1 Basic rack 4 19" Vertical extrusions, sheet steel with mounting holes 2 Multifunctional struts for cable clamping and universal mounting options 1 Cover with integrated cable entry 1 Front door, single, single safety glass panel, with handle and mounting for cylinder lock 1 Rear door, single, sheet steel, with handle and mounting for cylinder lock 1 Earth set, complete ( VDE 0100 ) 4 Levelling feet
How supplied
■ assembled

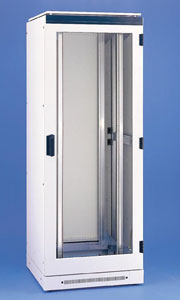

■ with fixed 19" built-in unit on the front
■ for built-in units in accordance with IEC 297 3
■ flexible assembly of the built-in units using T slots
■ cable entry via plinth and cover
■ heat loss discharge via ventilation dome
■ door opening angle 180°

Variants
Type 1
■ single rack (with side panels)
Type 2
■ rack for rack suite (without side panels)

For the installation of
■ 19" components on the front
■ equipment with maximum width of 450 mm
■ installation accessories

Jumpering compartment
■ front 123 mm

Load rating
■ 5000 N static

Degree of protection
Type 1
■ IP 40 (upgradeble to IP 55)

Tests
■ earthing according to VDE 0100 P 540
■ vibration test according to MIL-STD 810 E
■ IP test according to DIN 40 050 / IEC 529

Material / Finish
■ Basic rack, aluminium extrusion, polished
■ Corner piece, die-cast aluminium, polished
■ Covers, sheet steel, zinc passivated, powder-caoted, textured
■ Doors, sheet steel, powder-coated, textured, glass infill, front door, single safety glass panel, 4 mm
■ Multifunctional struts and 19" extrusions, sheet steel, zinc passivated

Colour
■ Door trim RAL 9011 black
■ Visible surface of the cover RAL 7035 light grey

Supply schedule
Type 1
1 Basic unit
2 19" aluminium vertical extrusion with T slot and increment slide for spring nut M5
2 Multifunctional frame for cable clamping and universal assembly options
1 Cover with ventilation dome and integrated cable entry
1 Front door, single-winged, single security glass panel, with handle and fixing for locking cylinders
1 Rear door, single-winged, sheet steel, with handle and fixing for locking cylinders
2 Side panels with quick locking
1 Plinth for cable entry on the side and rear with levelling feet (0-25 mm)
2 lateral plinth trim, closed
2 Plinth trim for front and rear, with airing vents and fixing for filter mat
1 Complete earthing test (VDE 0100)
Type 2
1 Basic unit
2 19" aluminium vertical extrusion with T slot and increment slide for spring nut M5
2 Multifunctional frame for cable clamping and universal assembly options
1 Cover with ventilation dome and integrated cable entry
1 Front door, single-winged, single security glass panel, with handle and fixing for locking cylinders
1 Rear door, single-winged, sheet steel, with handle and fixing for locking cylinders
1 Plinth for cable entry on the side and rear with levelling feet (0-25 mm)
2 Plinth trim for front and rear, with airing vents and fixing for filter mat
1 Complete earthing test (VDE 0100)

How supplied
■ assembled

Please note
For the installation of chassis runners and 19" shelves, additional 19"- are required at the rear. (in the Miracel 19" distribution rack NS 25 as standard).
Rack Suites

To create a rack series with the rack number, you require:
(n-1) racks without side panels
1 rack with side panels
In a rack suite, per connection you require a set of suite connectors BN 1.130.935.7

■ installation of chassis runners and 19" shelves possible
■ with fixed 19" built-in unit on the front and rear
■ for built-in units in accordance with IEC 297 3
■ flexible assembly of the built-in units using T slots
■ cable entry via plinth and cover
■ heat loss discharge via ventilation dome
■ door opening angle 180°

Variants
Type 1
■ single rack (with side panels)
Type 2
■ rack for rack suite (without side panels)

For the installation of
■ 19" components on the front and rear
■ equipment with maximum width of 450 mm
■ installation accessories

Jumpering compartment
■ front 123 mm

Load rating
■ 5000 N static

Degree of protection
IP 40 (upgradeble to IP 55)

Tests
■ earthing according to VDE 0100 P 540
■ vibration test according to MIL-STD 810 E
■ IP test according to DIN 40 050 / IEC 529

Material / Finish
■ basis rack, extruded aluminium, polished
■ corner pieces, die-cast aluminium, polished
■ cover zinc-plated sheet steel, powder-coated textured
■ doors, sheet steel, ,powder-coated structure, glass infill front door, single security-glass panel, 4 mm
■ multifunctional members an 19"-extrusions sheet steel, zinc-plated

Colour
Final digit of order number .1:
■ Door trim RAL 9011 black
■ Visible surface of the cover RAL 7035 light grey
Final digit of order number .8:
■ Door trim RAL 9011 black
■ Visible surface of the cover RAL 70321 black grey

Supply schedule
type 1
1 basic unit
4 19" aluminium vertical extrusions with T slot and increment slide for spring nut M5
2 multifunctional frame for cable clamping and universal assembly options
1 cover with ventilation dome and integrated cable entry
1 front door, single-winged, single security glass panel, with handle and fixing for locking cylinders
1 rear doors, sheet steel, with handle and fixing for locking cylinders
2 side panels with quick locking
1 plinth for cable entry on the side and rear with levelling feet (0-25 mm)
2 lateral plinth trim, closed
2 plinth trims for front and rear, with airing vents and fixing for filter mat
1 complete earthing test (VDE 0100)
type 2
1 basic unit
4 19" aluminium vertical extrusions with T slot and increment slide for spring nut M5
2 multifunctional frame for cable clamping and universal assembly options
1 cover with ventilation dome and integrated cable entry
1 front door, single-winged, single security glass panel, with handle and fixing for locking cylinders
1 rear doors, sheet steel, with handle and fixing for locking cylinders
1 plinth for cable entry on the side and rear with levelling feet (0-25 mm)
2 plinth trims for front and rear, with airing vents and fixing for filter mat
1 complete earthing test (VDE 0100)

How supplied
■ assembled

Please note
Rack suites
To create a rack series with the rack number n, you require:
(n-1) racks without side panels
1 rack with side panels
In a rack suite, per connection you require a set of suite connectors BN 01.130.935.7
